Features and Specifications
Note. Not recommended for SmartWinch use
For SmartWinch use, please select RMG Switch Std.

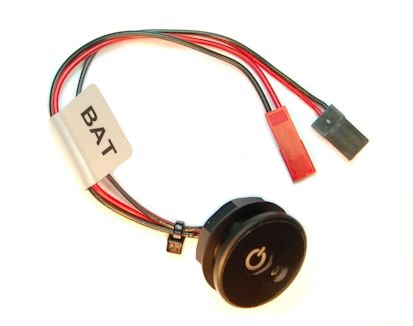

RMGSwitch-Fut connections diagram
The diagram shows simple conntection between battery and receiver.
All connections must be protected against exposure to water.
Do not allow connectors to lay in the bilge of the hull.
Water exposure (salt or fresh) to connectors is the most common mode of failure in the boats electrics.
Switch Operation, Voltage Display and LED functions
