Spare Parts

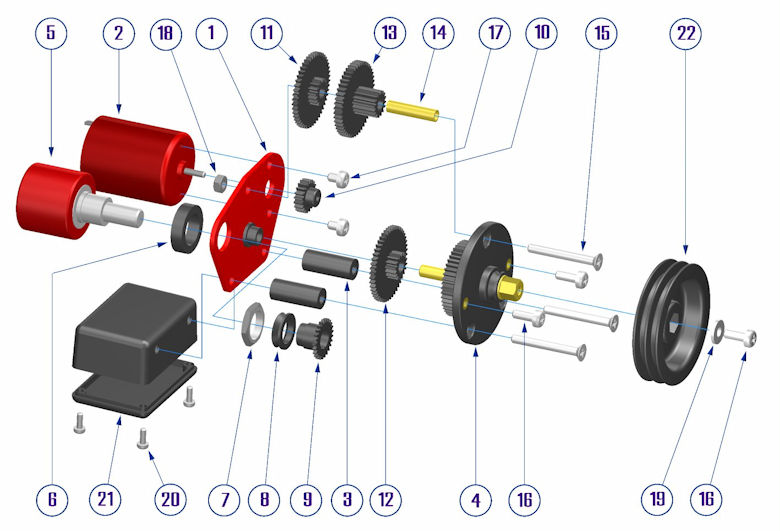

Use the drawing to identify the part required then go to the table below the drawing and knowing the winch model the part is required for, click on the part and you will be taken to that part's page so that it can be placed in the shopping cart. If multiple parts required, after entering a part into the shopping cart, select to continue shopping.
| 280 | 280, 290 | 380 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW | C | D | DL | EF | ES | EL | SW | C | D | HD | ES | EH | EL | |
| 1 | NA | MP290EF | MP290ES | MP290EL | NA | MP380 | MP380EL | |||||||
| 2 | 290M | 380M | ||||||||||||
| 3 | CS | |||||||||||||
| 4 | FE1 | FE2 | FE3 | FE4 | FE5 | |||||||||
| 5 | NA | 10TP | 5TP | 10TP | ||||||||||
| 6 | NA | PSp | ||||||||||||
| 7 | NA | PN | ||||||||||||
| 8 | NA | PSe | ||||||||||||
| 9 | NA | PG30 | PG26 | PG30 | PG26 | PG30 | PG30 | PG48 | PG30 | PG48 | ||||
| 10 | GA16 | GA20 | GA16 | GA18 | GA20 | GA16 | GA320 | GA316 | ||||||
| 11 | GB | GBF | GB | |||||||||||
| 12 | GC | GCF | GC | GC3 | ||||||||||
| 13 | GD | GDF | GD | GD3 | ||||||||||
| 14 | TS | |||||||||||||
| 15 | M3x25CSK | |||||||||||||
| 16 | M3x8PAN | |||||||||||||
| 17 | M3x4PAN (For 290 motor only) | M2.5x5PAN | ||||||||||||
| 18 | M3NUT | |||||||||||||
| 19 | M3W | |||||||||||||
| 20 | NA | 2x9ST (supplied with CBR6) | NA | 2x9ST (supplied with CBR6) | ||||||||||
| 21 | CBR3 (glued controller box) | CBR6 * | CBR3 (glued controller box) | CBR6 | ||||||||||
| 22 | 26s | 32s | 26s | 26s | 32s | 32w | 32s | 32w | ||||||
